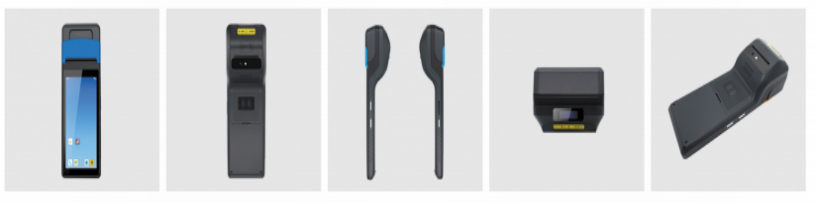

Designed for efficiency, this ultra-thin all-in-one handheld terminal combines printing and data processing in a lightweight industrial device.
Running Android 11.0 with a high-performance 4/8-core processor, it delivers fast operation for smart parking, warehousing, logistics, retail, and manufacturing—streamlining workflows and boosting productivity
Category | Parameter | Details / Value |
Physical Specifications | Dimensions | 320 × 78 × 17 mm |
| Weight | Approx. 350g |
| Color | Black (Gray rear shell, Black front shell) |
| Screen Size | 5.5-inch |
| Screen Resolution | 1440 × 720 |
| Touch Screen | Multi-touch, Corning Gorilla Glass 3 |
| Front Camera | 5.0 MP |
| Rear Camera | 13.0 MP, Auto Focus with Flash |
| Speaker | Built-in 8Ω/0.8W waterproof speaker × 1 |
| Microphone | Built-in, Sensitivity: -42dB, Impedance: 2.2kΩ |
| Battery | Non-removable polymer lithium battery |
| Battery Capacity | 3.7V / 5600mAh |
| Battery Life | ≈8 hours (Standby >300 hours) |
Performance | Processor | MTK6761 (Quad-core) / MTK6762 (Octa-core) |
| CPU Speed | 2.0 GHz |
| Memory | 2+16GB (Quad-core) or 3+32GB/4+64GB (Octa-core) |
| OS | Android 11.0 |
| NFC | ISO/IEC 14443A, 1-3cm range |
Data Communication | Wi-Fi | 802.11 a/b/g/n/ac, 2.4G/5G dual-band |
| Bluetooth | BT5.0 (BLE) |
| Cellular | LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41; WCDMA 1/2/5/8; GSM 2/3/5/8 |
| GPS | Beidou/GPS/Glonass |
Printing Function | Print Width | 48mm |
| Paper Width | 57.5±0.5mm |
| Paper Thickness | 0.1mm |
| Max Print Speed | 100mm/s (Receipt) / 60mm/s (Label) |
| Print Method | Line thermal printing |
| Print Dots | 384 dots/line |
| Operating Temp | 0°C to 50°C |
Data Capture | 1D Barcode | Zebra SE965 |
| 1D Resolution | 5 mil |
| 1D Speed | 50 scans/s |
| 1D Codes | UPC/EAN, Code 128, Code 39, GS1-128, etc. |
| 2D Barcode | CM60/N1 |
| 2D Resolution | 5 mil |
| 2D Speed | 50 scans/s |
| 2D Codes | PDF417, QR, Data Matrix, Aztec, etc. |
| LF RFID | 125/134.2kHz, 3-5cm range |
| HF RFID | 13.56MHz, ISO 14443A/B, 15693, 3-5cm range |
| UHF RFID | China: 920-925MHz, USA: 902-928MHz, EU: 865-868MHz |
| UHF Protocol | EPC C1 GEN2/ISO 18000-6C |
| UHF Antenna | Ceramic (1dBi), 1-6m range |
| ID Card | Online decryption & MPS hardware module |
| Face Recognition | Built-in algorithm |
| Thermometry | 1-3cm non-contact, ±0.2°C accuracy, 32°C-42.9°C range, ≤1s response |
Reliability | Drop Resistance | 1.5m (operating) |
| Operating Temp | -20°C to 55°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing) |
