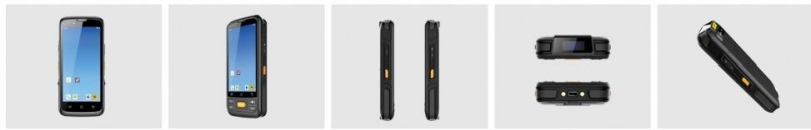

This compact Android 12 data terminal combines UHF RFID, barcode scanning, NFC, ID recognition, and GPS. Ideal for retail,
logistics, and biometric applications.
Category | Parameter | Details / Value |
Physical Specifications | Dimensions | 178 × 83 × 24.6 mm |
| Weight | Approx. 310g |
| Color | Black (Black rear shell, Black front shell) |
| Screen Size | 5.0-inch / Optional 5.72-inch |
| Screen Resolution | 1280 × 720 / Full Screen: 1440 × 720 |
| Touch Screen | Multi-touch, Corning Gorilla Glass 3 |
| Front Camera | 5.0 MP |
| Rear Camera | 13.0 MP, Auto Focus with Flash |
| Speaker | Built-in 8Ω/0.8W waterproof speaker × 1 |
| Microphone | Built-in, Sensitivity: -42dB, Impedance: 2.2kΩ |
| Battery | Removable polymer lithium battery |
| Battery Capacity | 3.7V / 5000mAh |
| Battery Life | ≈8 hours (Standby >300 hours) |
Performance | Processor | MTK6762 Octa-core 2.0GHz |
| Memory | 3GB+32GB (Optional 4GB+64GB) |
| OS | Android 12.0 |
| NFC | ISO/IEC 14443A, 1-3cm range |
Data Communication | Wi-Fi | 802.11 a/b/g/n/ac, 2.4G/5G dual-band |
| Bluetooth | BT4.0/BLE |
| Cellular | LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41; WCDMA 1/2/5/8; GSM 2/3/5/8 |
| GPS | Beidou/GPS/Glonass |
Data Capture | Fingerprint | Capacitive USB press module |
| Image Size | 256×360 pixels |
| Resolution | 508 DPI |
| Certification | FBI PIV FAP 10, China MPS, India STQC |
| Standards | ISO 19794-2/4, ANSI 378/381, WSQ |
| Capture Speed | <0.25s per frame |
| 1D Barcode | Zebra SE965 |
| 1D Resolution | 5 mil |
| 1D Speed | 50 scans/s |
| 1D Codes | UPC/EAN, Code 128, Code 39, GS1-128, etc. |
| 2D Barcode | NLS-CM60 & NLS-N1 |
| 2D Resolution | 5 mil |
| 2D Speed | 50 scans/s |
| 2D Codes | PDF417, QR, Data Matrix, Aztec, etc. |
| LF RFID | 125/134.2kHz, 3-5cm range |
| HF RFID | 13.56MHz, ISO 14443A/B, 15693, 3-5cm range |
| UHF RFID | China: 920-925MHz, USA: 902-928MHz, EU: 865-868MHz |
| UHF Protocol | EPC C1 GEN2/ISO 18000-6C |
| UHF Antenna | Ceramic (1dBi), 1-6m range |
| ID Card | Offline decryption of Chinese ID cards |
| Face Recognition | Built-in algorithm |
Reliability | Drop Resistance | 1.5m (operating) |
| Operating Temp | -10°C to 50°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing) |
